Gray Cast Iron Pipe: Characteristics, Uses, and Advantages

Gray cast iron pipe is a type of pipe made from gray cast iron, a material known for its strength, durability, and resistance to corrosion. It has been used for various plumbing and industrial applications due to its unique properties. In this article, we delve into the characteristics, uses, and advantages of gray cast iron pipes.

Characteristics of Gray Cast Iron Pipe

Composition

Gray cast iron pipe is primarily composed of gray cast iron, an alloy that contains carbon and silicon along with other elements like manganese, sulfur, and phosphorus. The specific composition may vary based on the manufacturer and the intended application of the pipe.

Microstructure

The "gray" in gray cast iron refers to the graphite microstructure that forms during the solidification process. This microstructure gives the iron a distinct gray appearance when fractured. The presence of graphite flakes within the material provides certain advantageous properties.

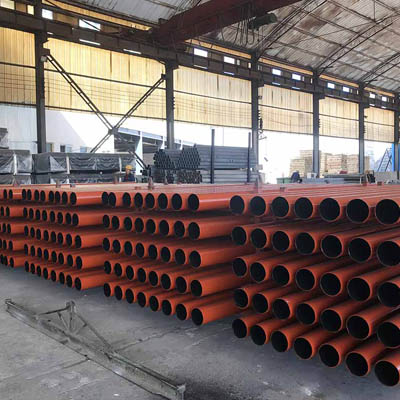

ASTM A888 Grey Cast Iron Pipe

Properties

• Ductility: Gray cast iron has relatively low ductility compared to other materials, making it less flexible and more brittle.

• Thermal Conductivity: The material has relatively high thermal conductivity, which enables it to effectively transfer heat. Vibration Damping: Gray cast iron's graphite microstructure contributes to its damping properties, reducing vibrations and noise.

• Corrosion Resistance: The iron forms a protective layer of iron oxide on its surface, providing some level of resistance to corrosion. Machinability: Gray cast iron is known for its machinability, making it easier to shape and work with during manufacturing.

Uses of Gray Cast Iron Pipe

Gray cast iron pipes have been used in various applications, particularly in plumbing and water supply systems.

Some common uses include:

1. Water Distribution: Gray cast iron pipes have historically been used for water distribution systems, delivering potable water to homes, businesses, and industries.

2. Drainage Systems: These pipes are also used for sewage and wastewater drainage systems due to their corrosion resistance and durability.

3. Municipal Infrastructure: Gray cast iron pipes have been utilized in municipal infrastructure projects, such as sewer systems and stormwater management.

4. Industrial Applications: In industrial settings, gray cast iron pipes have been used for various purposes, including conveying liquids and gases.

Advantages of Gray Cast Iron Pipe

 1. Durability: Gray cast iron pipes are known for their durability, with the ability to withstand heavy loads, pressure, and external forces.

 2. Corrosion Resistance: The protective iron oxide layer that forms on the pipe's surface provides some level of corrosion resistance.

 3. Sound Dampening: Gray cast iron's damping properties help reduce noise and vibrations, making it suitable for applications where noise reduction is important.

 4. Thermal Conductivity: The high thermal conductivity of gray cast iron allows for efficient heat transfer, making it useful for applications involving hot fluids.

 5. Machinability: The material's machinability makes it easier to manufacture and work with, allowing for precise shaping and customization.

Conclusion

Gray cast iron pipes have been used in a variety of applications due to their durability, corrosion resistance, and unique properties. While advancements in materials technology have introduced alternative materials for plumbing and industrial systems, gray cast iron pipes remain a historical and relevant choice in certain contexts. Understanding the characteristics, uses, and advantages of gray cast iron pipes is essential for making informed decisions regarding their application in various projects.
